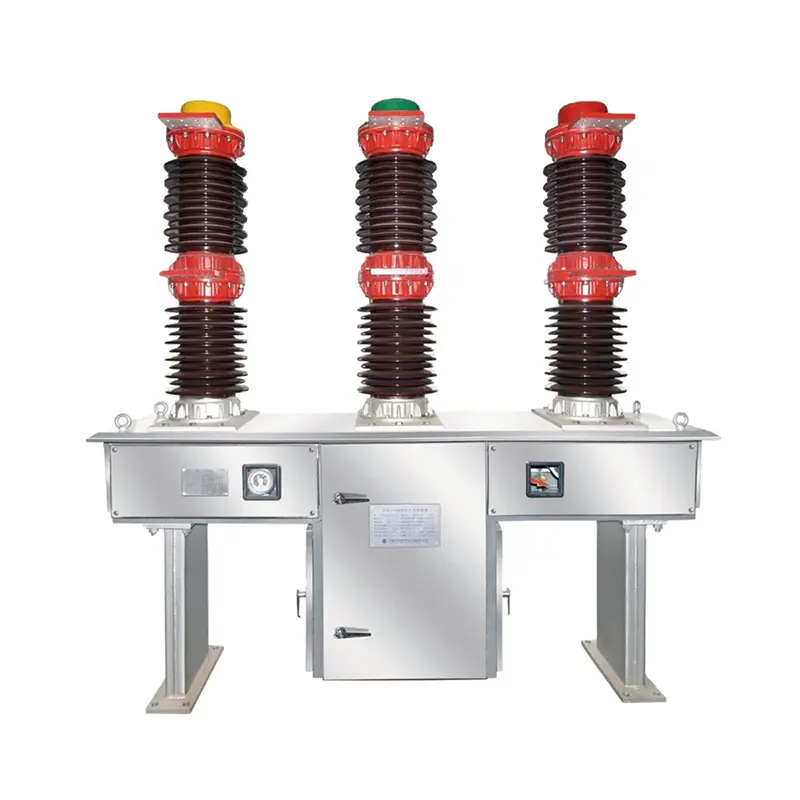

Why Our Outdoor Gas Circuit Breaker Is Built for Long-Term Grid Stability

At SanGao, we understand that outdoor power systems demand more than just basic functionality—they require long-term reliability, adaptability, and resilience in all weather and working conditions. Therefore, we designed our Outdoor Gas Circuit Breaker to meet both ANSI and IEC standards, while also keeping pace with the latest advancements in switching technology.

This circuit breaker offers a variety of configuration options, from SF₆ gas or vacuum interruption to spring or magnetic mechanisms, with both live-tank and dead-tank styles available. Whether you're managing a smart grid upgrade or maintaining a traditional setup, this breaker is engineered to support grid optimization at every level. What makes SF₆ gas interruption particularly valuable is its stability during operation.

Our Outdoor Gas Circuit Breaker also uses the GSH (MH) type energy storage and free-release mechanical operating mechanism, which allows both local and remote switching operations. Whether you're working on-site or managing systems from a control center, you get reliable, responsive performance every time. The internal kinematics—covering moving contacts, heating elements, and mechanism linkages—are all housed inside a sealed metal casing. This sealed design does more than just protect the components; it also prevents moisture buildup, supports long-term insulation performance, and eliminates the risk of condensation-related failures.

Height adjustability is another key feature. The entire structure is supported by stretchable metallic components that allow the terminal height to be changed from 2800mm up to 3700mm. This flexibility makes it easier to match local site conditions without custom redesigns. The external metal casing comes with an IP54 protection rating and includes a sealed inspection door with a viewing window. That means the internal components are protected from dust, rain, and external interference, while still being accessible for routine checks and maintenance.

We designed the Outdoor Gas Circuit Breaker for a wide range of environmental conditions. The breaker functions reliably at altitudes up to 2500 meters, with a plateau version suitable for up to 4000 meters. It operates effectively in temperatures ranging from -30°C to +40°C—and even down to -40°C when customized. It can withstand high humidity, strong winds up to 35 m/s, and is suitable for environments that are free of flammable gases, chemical corrosion, and intense vibration.

At SanGao, we’ve built this Outdoor Gas Circuit Breaker not just to meet technical standards, but to give engineers, grid managers, and installers peace of mind in the field. Whether you’re expanding power infrastructure or replacing aging systems, this breaker is ready for the job.
