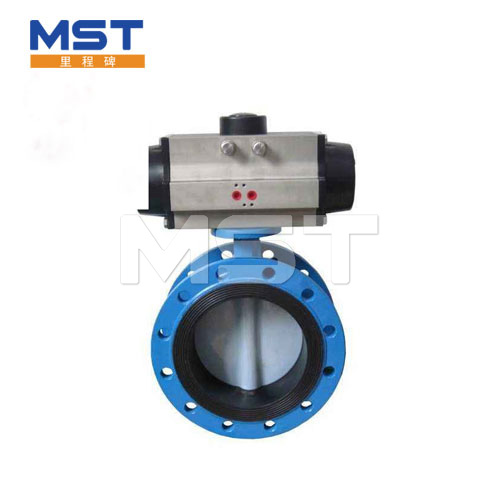

What are the disadvantages of butterfly valves?

Butterfly valves offer several advantages, but they also have some potential disadvantages that should be considered for specific applications. Here are some disadvantages of butterfly valves:

1. Flow Restriction: When fully open, the disc of a butterfly valve creates some degree of flow restriction. The disc's position in the flow path can cause a pressure drop, resulting in a slightly reduced flow rate compared to other types of valves. This can be a concern in applications where maintaining maximum flow capacity is critical.

2. Limited Control Capability: Butterfly valves are primarily designed for on/off or throttling applications that don't require precise flow control. While they can provide some level of throttling control, their performance in fine flow regulation is generally inferior to other types of valves, such as globe valves. They may experience limitations in achieving precise flow rates and controlling flow characteristics.

3. Pressure and Temperature Limitations: Depending on the design and materials used, butterfly valves may have limitations regarding the pressure and temperature ranges they can effectively handle. High-pressure or high-temperature applications may require specialized butterfly valves with specific construction materials or designs to ensure safe and reliable operation.

4. Potential for Cavitation and Water Hammer: In certain conditions, such as high flow velocities or sudden flow changes, butterfly valves may be susceptible to cavitation and water hammer effects. Cavitation occurs when pressure drops below the vapor pressure of the fluid, resulting in the formation and collapse of vapor bubbles. Water hammer is the sudden increase in pressure caused by the rapid deceleration or redirection of fluid flow. Both of these phenomena can lead to noise, vibration, damage to the valve, and potential system issues.

5. Seal Integrity: The sealing mechanism of butterfly valves relies on a resilient seat or an elastomeric seal around the disc. Over time, the seal may wear out or deteriorate, potentially causing leakage or reduced valve performance. It's important to monitor and maintain the seal integrity to ensure proper functioning of the valve.

6. Maintenance and Repair: In some cases, the maintenance and repair of butterfly valves can be more complex compared to other types of valves. Accessing the internal components or replacing the seat or seal may require disassembling the valve, which can be time-consuming and may require skilled personnel.

It's essential to evaluate these disadvantages in the context of your specific application requirements and consult with experts or valve manufacturers to determine whether butterfly valves are suitable for your needs. Other valve types may be more appropriate for applications that demand precise control, higher pressures, extreme temperatures, or specialized flow characteristics.
